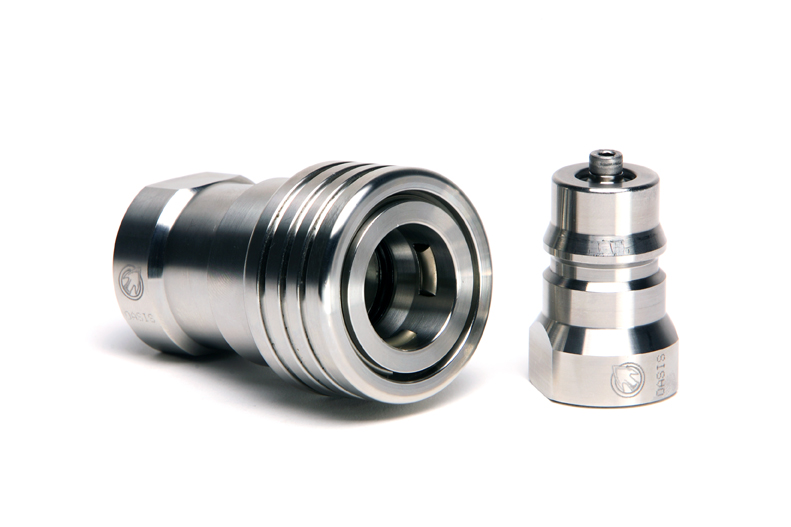

400 Series Quick Couplers

Anti-leak spring loaded poppets in both male and female sections. Hardened segment connection style increases gripping surface area. This significantly reduces wear on male coupling. Designed to be uncoupled/coupled at atmospheric pressure (0 MPa gauge) only. Easy to service, kits readily available. SAE male thread to SAE J1926-2 Heavy Duty standard. SAE female thread to SAE J1926-1 standard Male and female are available individually if required. All products are manufactured to ISO 9001 standards.

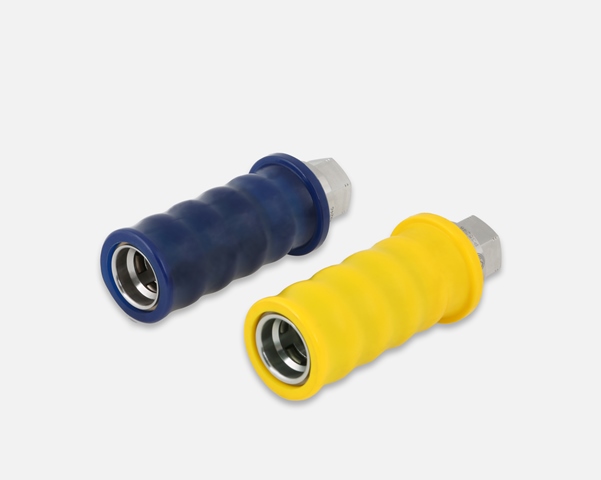

HC308 Ice Cover

Used to prevent ice build-up Design for exclusive use with all Oasis HC308 couplers High Strength, durable plastic body with Neoprene insulation Design to operate in low temperatures Corrosion resistante Stainless Steel cap screws

Trailer Load/Unload Manifold

Full Flow Manifold with Two SAE Load/Unload Ports for Quick Release Couplers 1/4" vent ball valve for venting, 1 5/16-12 SAE Female Threads. Anti-Blowout Stem Design Complies to PED 2014/68/EU Saves commissioning time & reduces joint inspections Can Be Manufactured to Your Specifications Precision CNC Machined Easily Serviced Service Kits Readily Available Extended Cycle Testing to Ensure Longevity Manufactured from Certified 304 Stainless Steel Bar Stock. SS316 also Available

Ultra Fast Fill Quick Coupler - NPT

Ultra Fast Fill Flow Design 3 Times More Flow than the Standard Coupler HC208 Integrated Lock In Place Sleeve to Ensure Correct Coupling is Achieved Serviceable Manufactured From Certified 316 Stainless Steel Bar Complies to PED 2014/68/EU Compatible with profile B of ISO7241 and is connectable with Oasis HC208 couplers Extended Cycle Testing to Ensure Longevity Hardened Segment Connection Design Increases Gripping Surface Area & Reduces Wear in Receptors All Males Couplers Supplied With Dust Caps. Part Nrs.: - HC308-6NDDN-M - 1” NPT Male Part (includes Dust Cap) - HC308-6NDDN-F - 1” NPT Female Part

Ultra Fast Fill Quick Coupler - SAE

Ultra Fast Fill Flow Design 3 Times More Flow than the Standard Coupler HC208 SAE Thread to SAE J1926-2 Heavy Duty Standard Male SAE Thread Allows For Direct Connection To Trailer Manifolds Without Need For Adapters Compact Design Makes Coupler Compatible With All TITAN® Trailers Serviceable Manufactured From Certified 316 Stainless Steel Bar Compatible with profile B of ISO7241 and is connectable with Oasis HC208 couplers Complies to PED 2014/68/EU Extended Cycle Testing To Ensure Longevity All Male Couplers Supplied With Dust Caps.

200 Series NGV1 Nozzles

Specification Sheet PDF Download (270.9kb)

300 Series Ultra Fast Fill Quick Coupler - SAE

Specification Sheet PDF Download (1.1M)

300 Series Ultra Fast Fill Quick Coupler

Specification Sheet PDF Download (793kb)

HC404 H2 Coupler - CRN

Specification Sheet PDF Download (713.9kb)

400 Series Hydrogen Quick Couplers

Specification Sheet PDF Download (711.2kb)

HC104 Quick Coupler.jpg

Document Download (116.8kb)
